模压托盘介绍introduction
吴杰 模压托盘是利用优质木屑、刨花等植物纤维，经过烘干、施胶、高温高压一次模压成型的新型环保托盘。
Wujie presswood pallet is a new environmentally friendly product. It uses wood chips, shavings and other quality plant fiber,
is one-time forming under high temperature and pressure after drying, glue mixing.
新型环保Environment-friendly:
废物利用、提高木材利用率
Waste utilization, improve timber utilization
免熏蒸免检疫Fumigation-free
符合国际ISPM15的要求，免熏蒸 免检疫 进出口通关更方便快捷Conform to ISPM15, allow easy and quick custom clearance
价格便宜Cheap price
相对于传统木托盘，价格便宜约50%50% cheaper than traditional wood pallet
节省空间Space-saving
嵌套式堆垛，50个托盘高度约2.2米Nestable stacking, the height of 50 pallets is about 2.2 meter
一次模压成型One-time forming
无需钉子组装，表面光滑不会划伤货物Smooth surface without nails, avoid scratching the cargo
四向进叉Four-way Entry
可同时满足各尺寸手动液压搬运车和叉车的需要，使用方便Convenient use for both hand pallet truck and forklift
高承重力Heavy loading
根据托盘设计结构不同，载荷能力可达到3吨以上Static load as high as 3 ton or more varies by structures
节省成本Cost-saving
可为企业节省大量运输、仓储和包装费用Saving expenses for freight, storage and package
循环再生Cyclic regeneration
可实现再循环、再回收、再利用、回收率可达100%
Reuse, recovery, recycling rate is 100%
关于吴杰about us：
“吴杰越领 新材应容”吴杰新材料（苏州）有限公司位于风景秀丽苏州虎丘山北，位于相城区黄桥街道胡湾工业区。
吴杰新材料利用各类植物纤维做为原料，专业生产环保型模压托盘。产品符合国际ISPM15标准的要求，具备免熏蒸、
免检疫，便于货物进出口，是可循环再生的高品质环保产品。
产品可广泛用于烟草、食品、化工、电子、包装、仓储、物流、药业、超市、港口、码头的仓储物流和配送物流
等领域等行业。吴杰企业着眼于未来，即要做到企业之间的合作共赢，又要取得较好的经济和社会价值。关注有
限资源的可持续的合理利用。
WU JIE ADVANCED MATERIAL TECHNOLOGY (SUZHOU) CO., LTD. is located in the north of beautiful Huqiu Mountain, Huwan
Industrial Area, Huangqiao Street, Xiangcheng District, Suzhou City. WUJIE specializes in manufacturing environmentally friendly
presswood pallet by taking various types of plant fiber as raw materials. The products conform to international ISPM15 standards,
free of fumigation and quarantine. It is convenient for cargo exportation.
The renewable high-quality pallets can be widely used in tobacco, food, chemical, packaging, warehousing, logistics, medicine,
supermarkets, seaports, port warehousing and distribution and other fields. WUJIE focuses on both the win-win cooperation
between business partners and the achievement on economic and social value. We concern about the sustainable rational use
of limited resources.
我们的产品

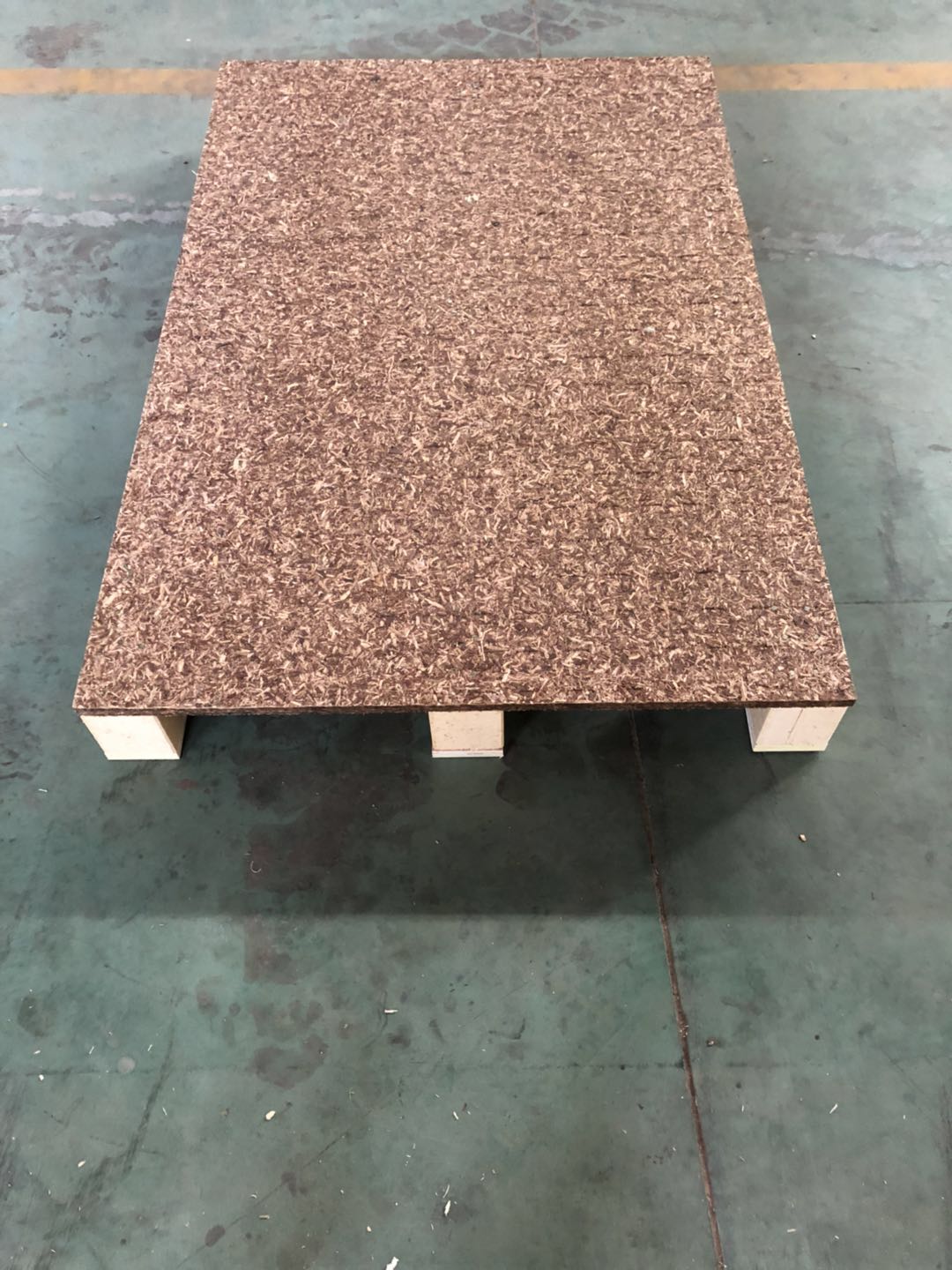

1、太阳能板专用模压托盘 SOLAR PANEL PRESSWOOD PALLET
此款托盘是专门为自动化生产线设计制作，适合用于多种自动传送系统，如带式传送系统、链式传送系统、辊轴
传送系统等，托盘在传送系统上运行平稳流畅，并兼有其他款式模压托盘的优点，具有高承重、不变形、防潮防
火防虫、出口免熏蒸、环保无污染等特点，也是企业降本增效的优良选择。
This pallet is especially designed for automatic production lines. It is suitable for various automatic conveyor systems such as belt
conveyors, chain conveyors, roller conveyors and etc. The pallet performs smoothly and steadly. Besides it has other advantages
of presswood pallets, high load-bearing, non-deformation, moisture-proof, fire-proof, insect-proof, free fumigation for export,
environmental friendly. It is an excellent choice for enterprises to reduce cost and increase benefit.

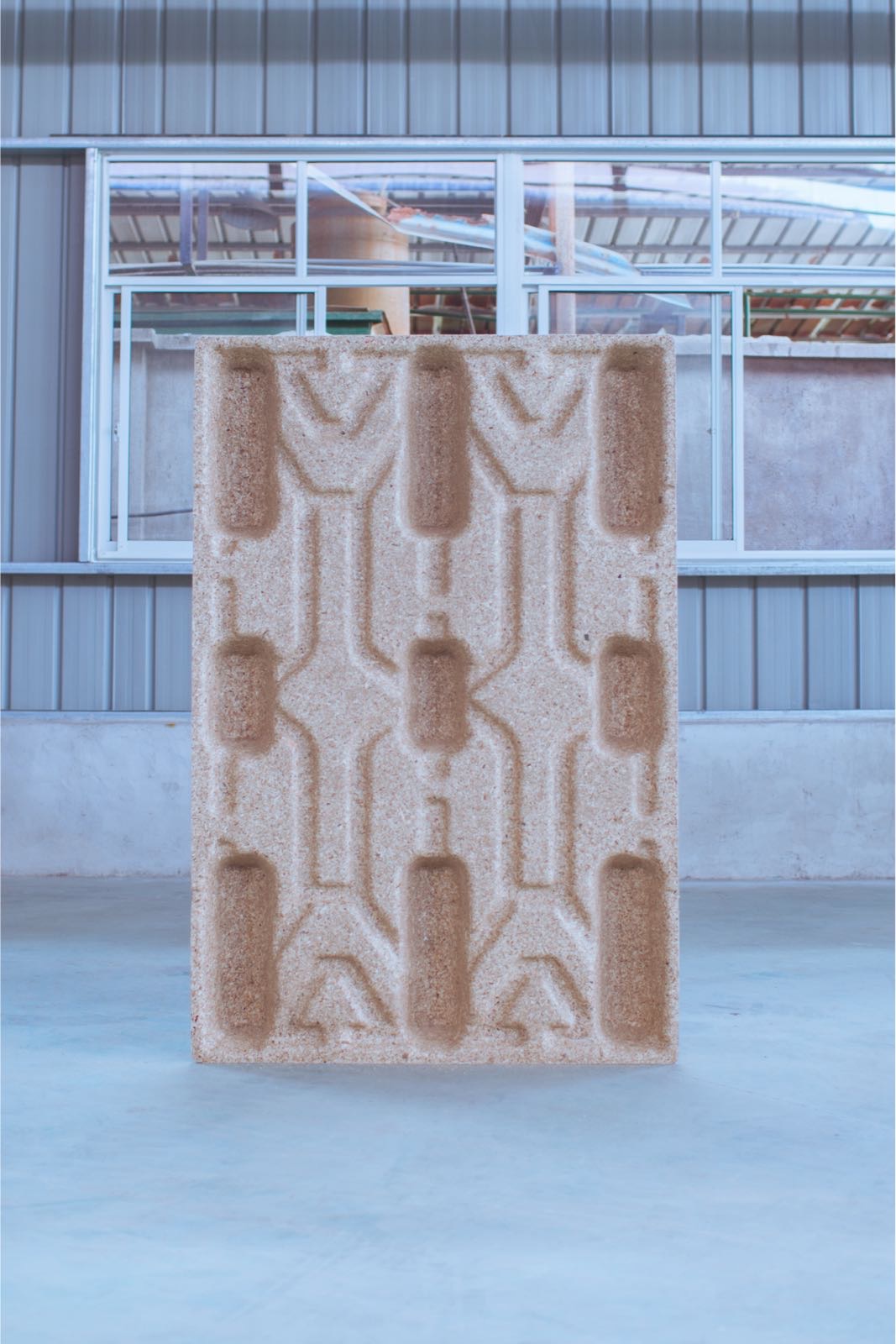

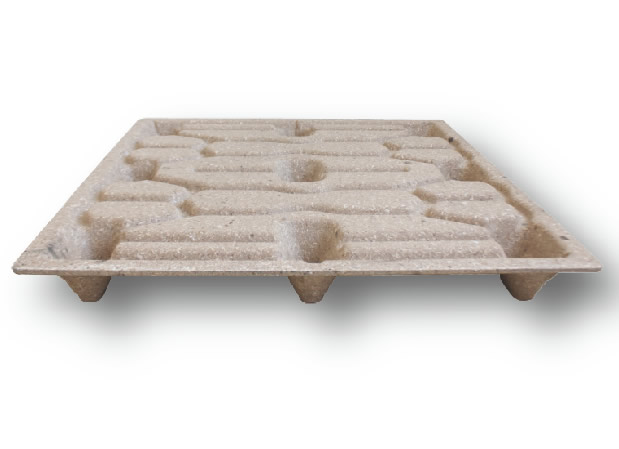

2、单面模压托盘 Single Faced Presswood Pallet
面板和底部九个支撑脚墩是一个整体，一次模压成型，加强筋纵横交错向四面八方延伸，受力均匀，四向进叉。Single faced presswood pallet is one-time forming without nails or screws. The criss-cross strengthening ribs extend in all
directions. Four-way entry design is easy to use.
3、子母扣托盘 Snap button Pallet
子母扣托盘打破了传统双层托盘依靠铁钉组装的方式，充分发挥模压技术优势，采用子母扣的形式将上下面板
嵌套组成一体，设计理念新颖，使模压托盘结构更加多元化，在模压托盘发展道路上具有里程碑式的意义。
子母扣托盘简单、独特、便捷的组装方式，可即装即用，用完可拆卸。面板和底板拆分运输，节省人间和运费，
弥补了传统双面托盘运输难、组装慢的缺陷。
Snap button pallet is an innovation product. It breaks the traditional pallet structure which is assembled by nails or screws.
Taking full advantage of mould forming technology, the snap button pallet realizes nestable stacking. The unique design allows
user to assemble or disassemble it freely for different usages. The top and bottom panel could be stacked separately, which
saves much storage and shipping space. It is really a landmark in presswood pallet industry.
4、川字底托盘 Single Faced Rackable Presswood Pallet
面板和支撑底一次模压成型，支撑底呈川字分布，加强筋单向延伸，可双向进叉，适合码垛及上货架使用。
The single faced rackable presswood pallet is one-time forming. It uses four long feet to replace the traditional nine pallet feet.
This design makes it nestable and better for use on the shelf. It is two-way entry.
工艺流程：模压托盘全自动生产Technological process
1、原材料
2、削片：将原材料进行初步切断削片处理
3、粉碎：将初步加工的原材料破碎至10mm左右
4、储料及自动配比：把不同种类原材料分类存储并且进行自动配比传输
5、出料
6、烘干：对原奢料进行高温烘干，控制含水率在3%左右
7、干料仓储：烘干后的原料冷却存储
8、拌胶：原材料和粘合剂均匀混合
9、自动派料：将拌胶料按照设定数量输送至铺装机
10、自动上料：将原料输送至模具中
11、高温模压：材料在专业模压机中经高温高压一次模压成型
12、自动出板：将成型后的托盘自动从模具中取出
13、手动修边：对托盘的边角进行打磨处理
14、托盘成品
